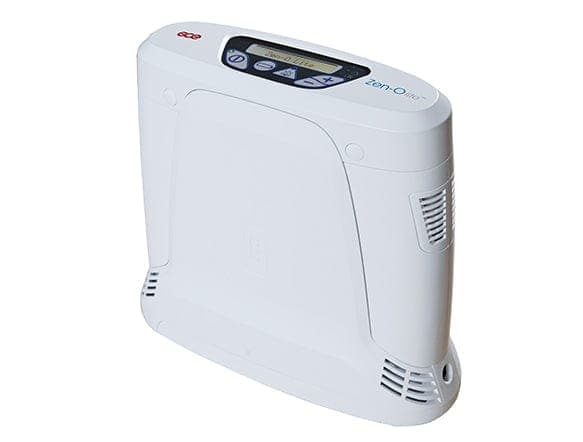

Compass Health ZEN-O LITE POC CONCENTRATOR

Zen-O lite™ portable oxygen concentrator offers reliability, flexibility and support active lifestyles of patients requiring oxygen therapy.

Zen-O lite™ is the ultra-lightweight portable oxygen concentrator from GCE Healthcare and weights just 2.5kg. The device is designed for patients with active lifestyles and require long term oxygen therapy (LTOT).

Zen-O lite™ delivers up to 1050 ml of oxygen per minute in pulse mode. Zen-O lite™ is supplied with a variety of accessories, including a carry bag, battery, AC and DC power supply cables and a user guide. The device is suitable for everyday use and is really quiet some patients will even forget it’s there.

Zen-O lite™ features breath sensitivity and Rate Responsive Therapy™ technologies that enables rapid breath detection and oxygen delivery required.

RATE RESPONSIVE THERAPY™ (RRT)

Zen-O lite™ delivers oxygen on demand, which is triggered by the patient’s inhalation. Whether a patient is climbing the stairs or taking a walk, Zen-O lite™ will automatically respond to the breath rate by adjusting the amount of oxygen needed to ensure the patient remains saturated.


CLARITY CONNECTED CARE

Clarity from GCE Healthcare is a secure online platform that allows home oxygen providers to view data such as oxygen purity, device usage history, battery capacity, active alarms and more from a connected Zen-O™ and Zen-O lite™ portable oxygen concentrator (POC), enabling them to:

•     Monitor device performance and carry out predictive maintenance
•     Support patients in adhering to their oxygen therapy
•     Manage assets and track devices

FEATURES AND BENEFITS

• Simple and easy-to-use
• Pulse mode up to 1050 ml, Eco Mode, Auto Mode

• Lightweight, portable and durable

• TAA compliant for air travel

• Replaceable sieve modules
• Breath detection indicator

TECHNICAL DATA

Size (W x D x H):	249 mm x 97 mm x 235 mm   (9.8" x 3.8" x 9.25")
Weight:	2,5 kg (5.5 lbs) without carry bag
Power requirements:	AC adaptor: 100-240 V AC (+/- 10 %)    50 - 60 Hz in, 24 V, 5.0A out
	DC adaptor: 11.5 - 16 V DC in, 24 V, 5.0A out
Purity:	87 % - 96 % at all settings
Maximum oxygen  discharge pressure:	20.5 psi
Inspiratory trigger sensitivity:	- 0.12 cm/H2O
Humidity range:	5 % to 93 % +/- 2 % non-condensing
Operating altitude:	0´to 13,000´(0 m to 4,000 m)
Operating temperature:	5°C (41°F) and 40°C (104°F)
Storage temperature:	-20°C (-4°F) and 60°C (140°F)
Setting:	Adjustable in 0.5 increments from 1.0 to 5.0
Noise level:	37 db(A) - At setting 2
Battery duration:	Approx. 4,5 hours\ - At setting 2

Rate Response Therapy
RS-00608 User Manual
RS-00608 Maintenance Guide 2023

Shipping Weight: 5.0 lbs
